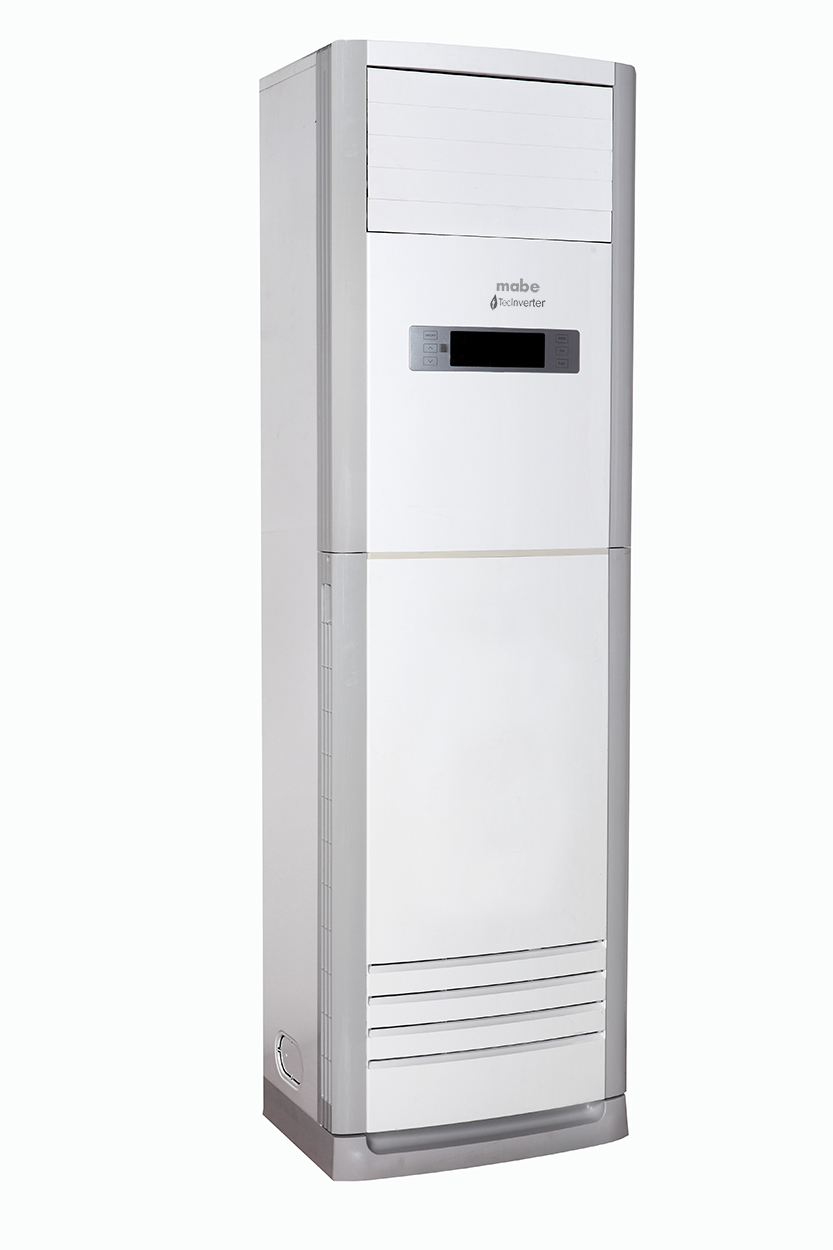

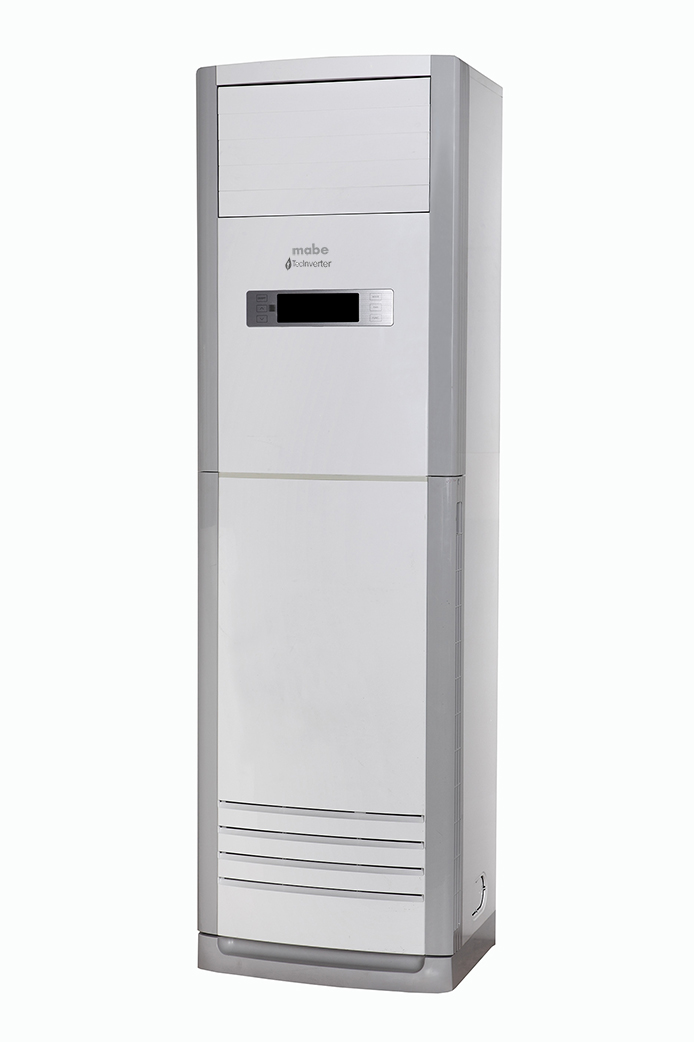

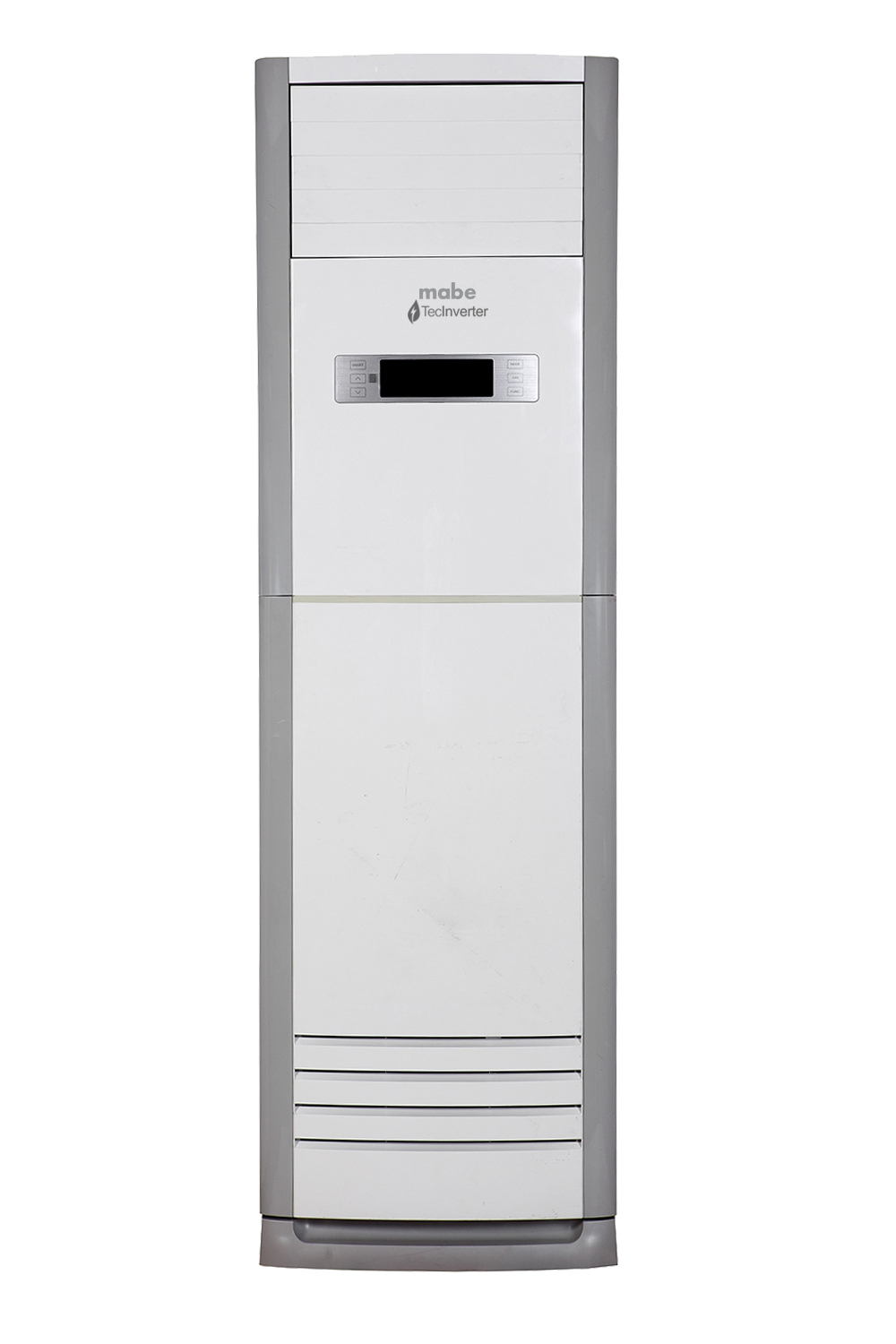

Mabe Appliances Inverter Floor Standing 3TR

Model : AFBM36BXV- 3TR


Inquire Now
Where to Buy
Share



  •  3TR 38,018 kj/h(14400-43000)
  • Tec Inverter
  • Eco Friendly Refrigerant R410a
  • Anti-Corrosive Evaporator Gold Fin
  • EER: 10.4
  • Rated Current 16.2A
  • Auto Restart Function
  • Independent Dehumidification
  • Easy Clean Pannel
  • On and Off Timer
  • Anti- Rust Cabinet
  • Dimension Indoor 540x410x1825 WxDxH mm
  • Outdoor unit:  946x410x810 mm (WxDxH)



__ Column1 AFBM36BXV 3TR AFBM60BXV 5TR
Capacity                       Kj/h 38,018 58,025
Capacity                       Kj/h 14,400- 43,000 23,500-65,000
Rated Input       W 3,655 5,736
Rated current    A 16.2 16
EER         W/W 2.89 2.81
EER          Kj/h/W 10.4 10.1
Power supply    (Indoor ) V- Ph-Hz 230+/-10% V,1Ph，60Hz 230+/-10% V,1Ph，60Hz
Power supply    (Outdoor ) V- Ph-Hz 230+/-10% V,1Ph，60Hz 230+/-10% V,3Ph，60Hz
Max. input consumption         W 4500 6900
Max. current                A 22 20
Refrigerant   R410a R410a
INDOOR UNIT
Fan Motor Speed(Hi/Mi/Lo) r/min 590/540/470 595/540/480/400
Indoor Air flow (Hi/Mi/Lo) m3/h 1851.6/0/1611.1 2200/1780/1780
Indoor Noise level (Hi/Mi/Lo) dB(A) 55.5/55.5/52.5 54.5///47.5
Dimension(W*D*H) mm 540x410x1825 610x390x1925
Packing   (W*D*H) mm 1965x690x565 2070x765x515
Net/Gross weight   Kg 50.3/66.5 58.5/76.5
  mm ODΦ16mm ODΦ16mm
OUTDOOR UNIT
Fan Motor Speed r/min 910/830 860/780
Air Flow m3/h 3541 7500
  dB(A) 59.5 60.5
Dimension(W*D*H) mm 946x410x810 952x415x1333
Packing  (W*D*H) mm 1090x500x885 1095x495x1480
Net/Gross weight   Kg 65.6/70.6 100.1/113.3
Connection Pipe
Gas additional charge   30 30
Outer Diameter  Liquid Pipe 3/8in 3/8in
  Gas Pipe  5/8in 3/4in
Max Distance Height  20 30
  Length 30 50
